Tubs and their Specifications
Complete Catalog in PDF Format
- To view a specific tub, just click
on it's name from the following list.
- To print a tub's spec sheet, use
the print command from the "File" pull-down menu of your browser once you've
advanced to that tub's spec sheet by clicking on it's name from the following
list.
- After viewing or printing tub's spec sheet,
press the "Back" button from your browser's "Tool Bar" to return to this list.
Six-Eleven's
Pans
Return to Home Page
|
Tub Name
|
Length
|
Width
|
Height
|
Gallon
Capacity
|
Weight
|
Tub Shape
|
Comments
|
|

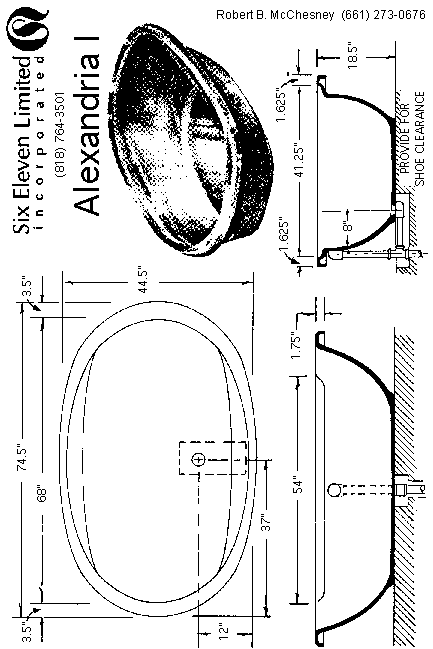

Alexandria I
|
74.5"
|
44.5"
|
18.5"
|
75 gal.
|
200 lbs.
|
Oval
|
Self rimming
|
|

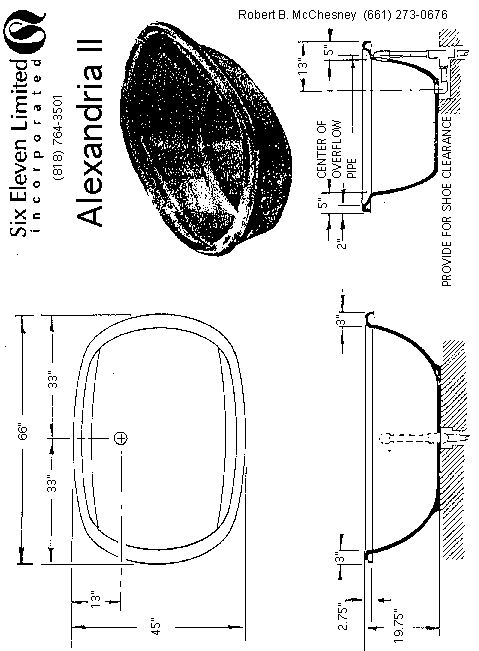

Alexandria II
|
66"
|
45"
|
19.25"
|
65 gal.
|
195 lbs.
|
Oval
|
Self rimming
|
|

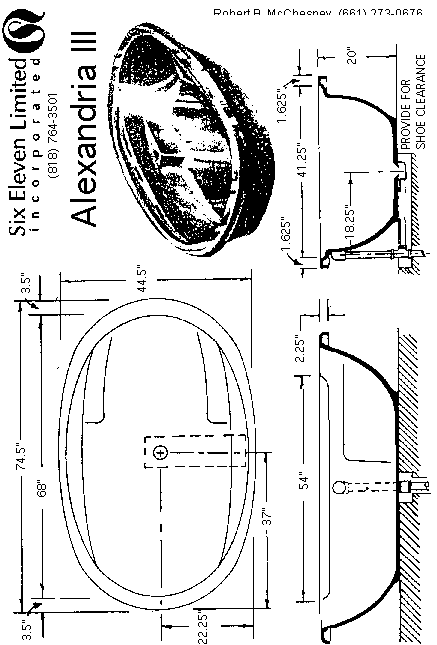

Alexandria III
|
74.5"
|
44.5"
|
20"
|
75 gal.
|
225 lbs.
|
Oval
|
Self rimming, arm rests, center drain
|
|

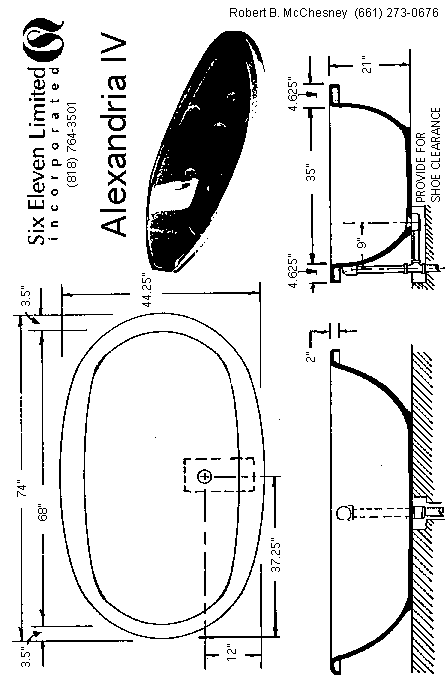

Alexandria IV
|
74"
|
44.25"
|
21"
|
75 gal.
|
225 lbs.
|
Oval
|
Self rimming
|
|

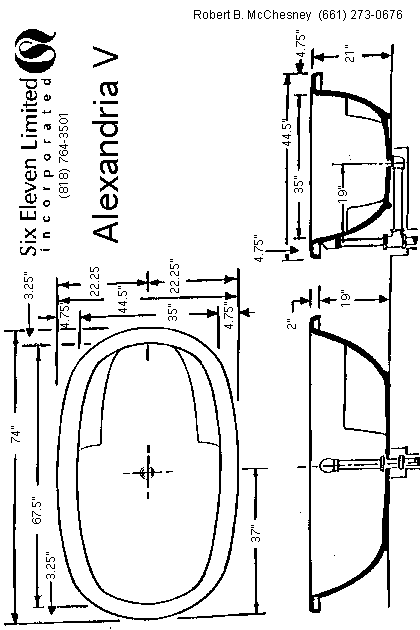

Alexandria V
|
74"
|
44.5"
|
21"
|
80 gal.
|
190 lbs.
|
Oval
|
Self rimming, arm rests, center drain
|
|

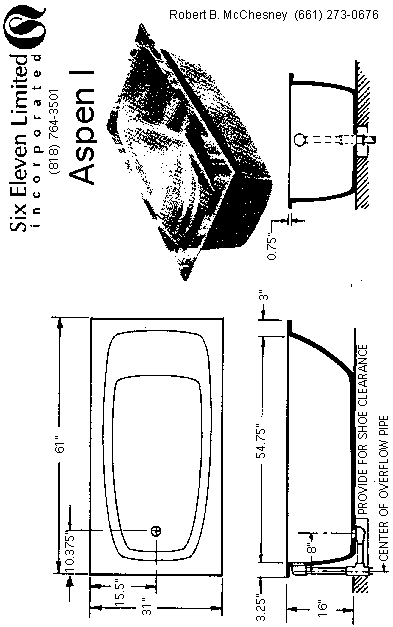

Aspen I
|
61"
|
31"
|
16"
|
40 gal.
|
180 lbs.
|
Rectangle
|
Flat deck
|
|

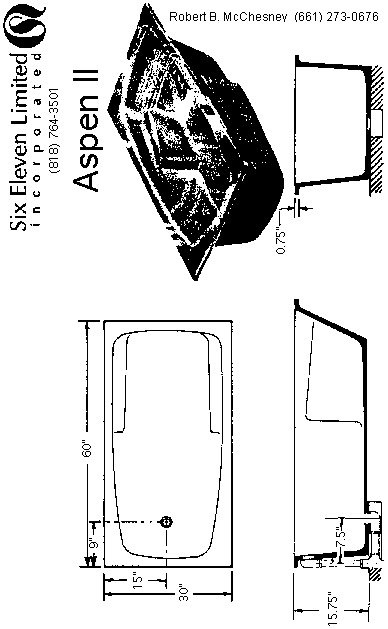

Aspen II
|
60"
|
30"
|
15.75"
|
45 gal.
|
155 lbs.
|
Rectangle
|
Flat deck, arm rests
|
|

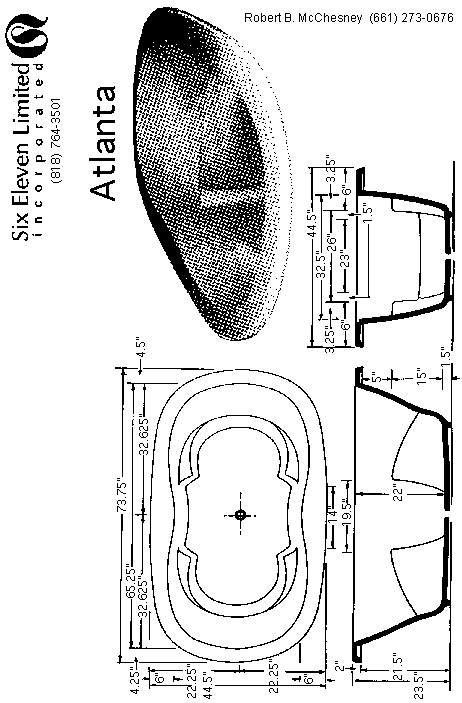

Atlanta
|
75.75"
|
44.5"
|
23.5"
|
95 gal.
|
185 lbs.
|
Oval
|
Self rimming, arm rests, two seater, center drain
|
|

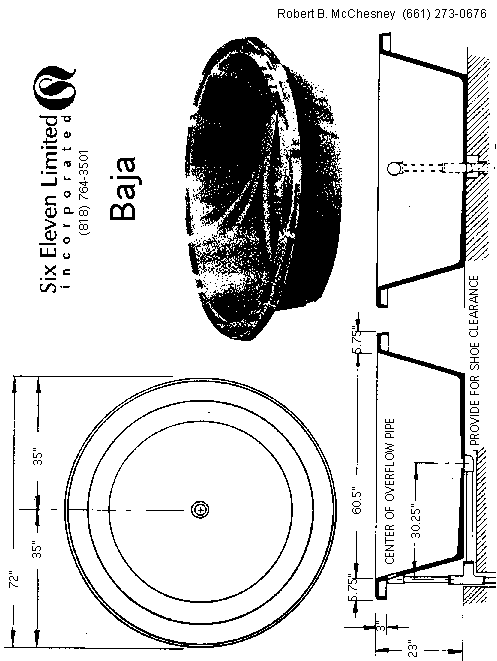

Baja
|
72"
|
72"
|
23"
|
160 gal.
|
460 lbs.
|
Round
|
Self rimming, center drain
|
|

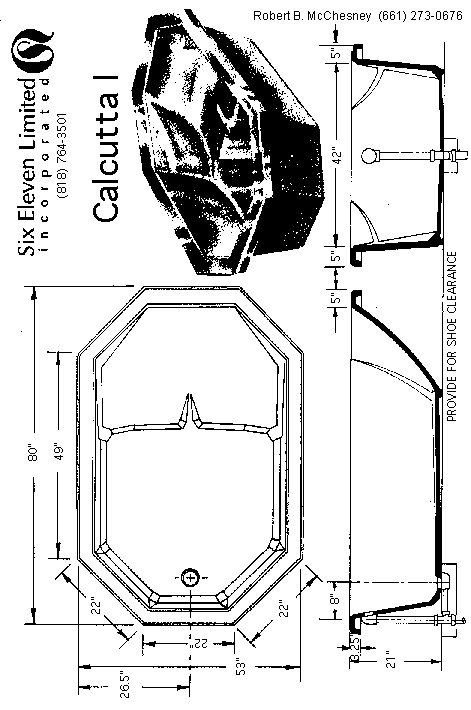

Calcutta I
|
80"
|
53"
|
21"
|
110 gal.
|
300 lbs.
|
Hexagon
|
Self rimming
|
|

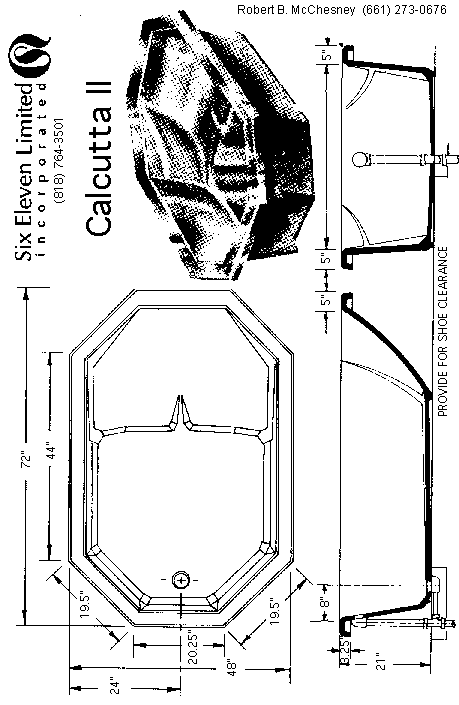

Calcutta II
|
72"
|
484
|
21"
|
98 gal.
|
275 lbs.
|
Hexagon
|
Self rimming
|
|

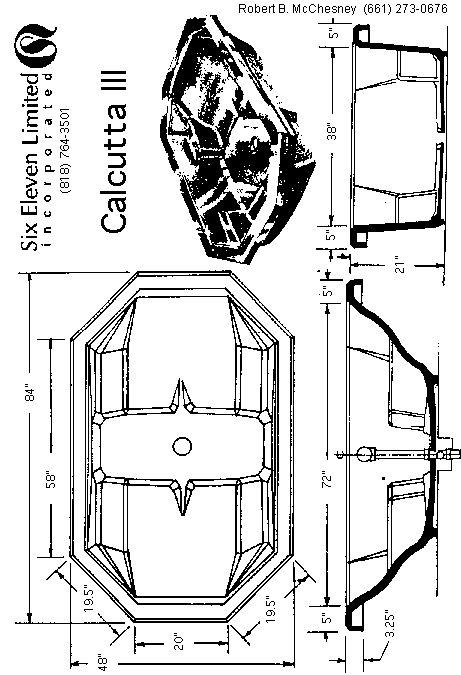

Calcutta III
|
84"
|
48"
|
21"
|
105 gal.
|
328 lbs.
|
Hexagon
|
Self rimming, arm rests, two seater, center drain
|
|

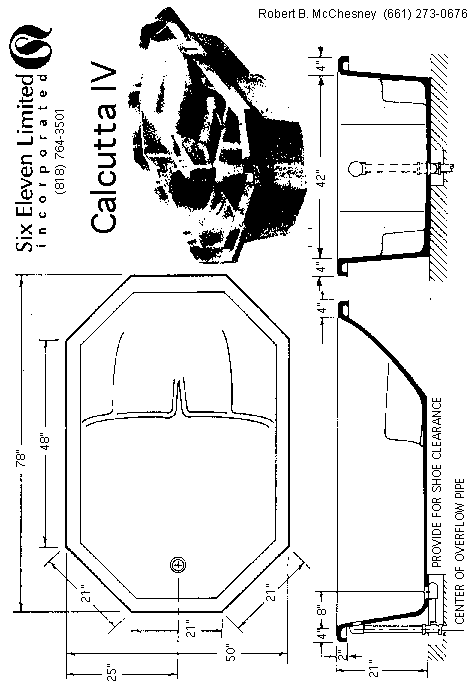

Calcutta IV
|
78"
|
50"
|
21"
|
103 gal.
|
290 lbs,
|
Hexagon
|
Self rimming, arm rests
|
|

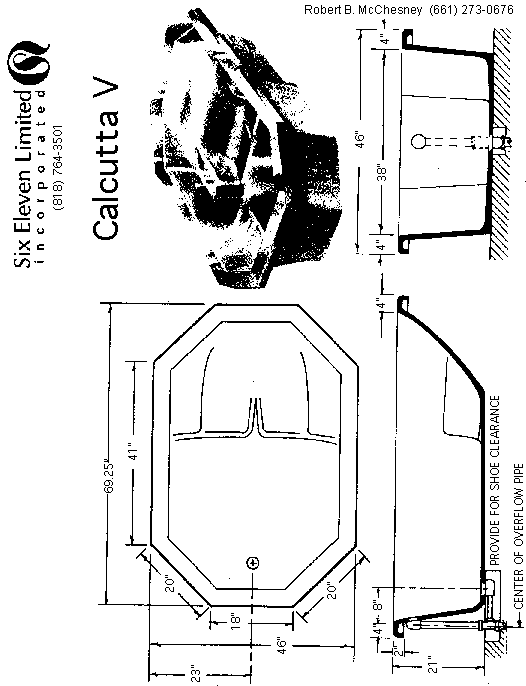

Calcutta V
|
69.25"
|
46"
|
21"
|
92 gal.
|
257 lbs.
|
Hexagon
|
Self rimming, arm rests
|
|
Cancun
|
72"
|
54"
|
19.25"
|
110 gal.
|
320 lbs,
|
Square
|
Flat deck, arm rests
|
|

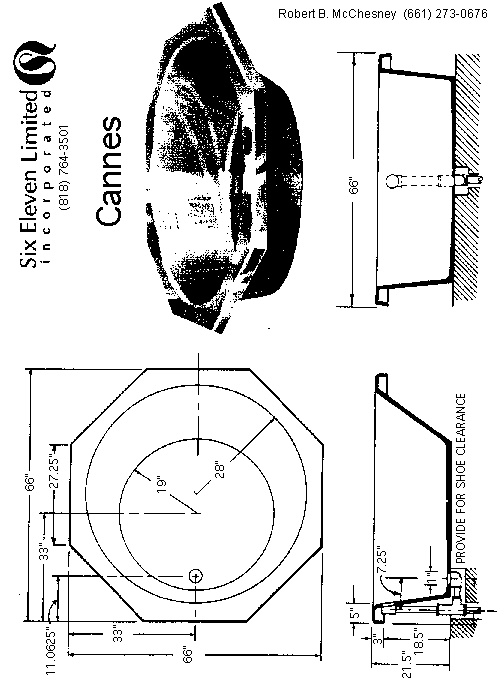

Cannes
|
66"
|
66"
|
21.5"
|
85 gal.
|
325 lbs.
|
Hexagon
|
Self rimming
|
|

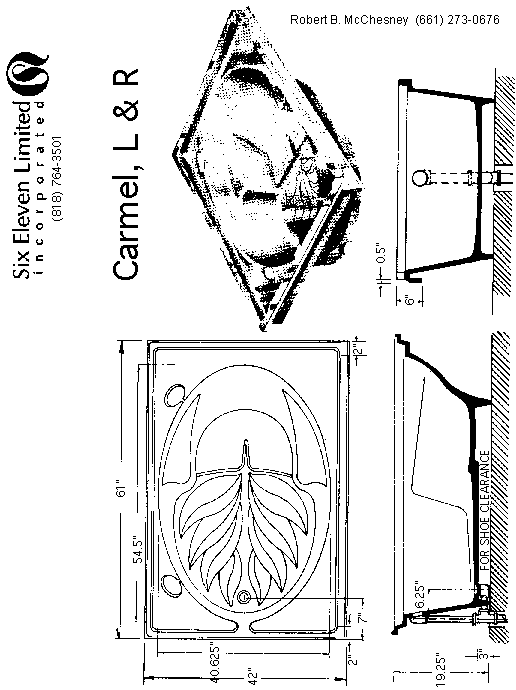

Carmel L & R
|
51"
|
42"
|
19.25"
|
45 gal.
|
244 lbs.
|
Rectangle
|
Arm rests
|
|

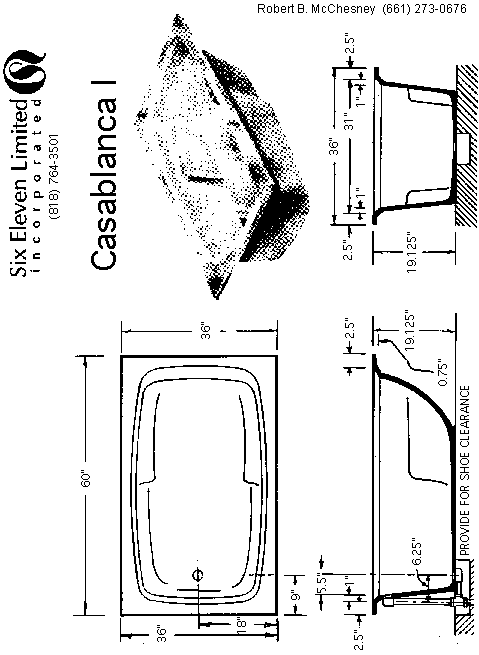

Casablanca I
|
60"
|
36"
|
19.25"
|
55 gal.
|
165 lbs.
|
Rectangle
|
Flat deck, arm rests
|
|

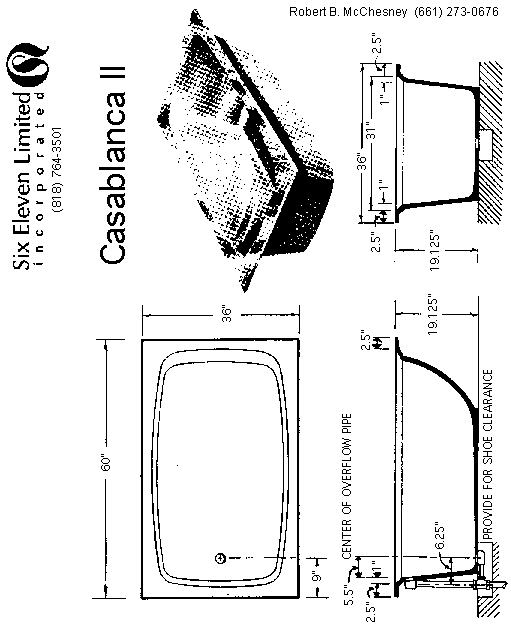

Casablanca II
|
60"
|
36"
|
19.125"
|
65 gal.
|
235 lbs.
|
Rectangle
|
Flat deck
|
|

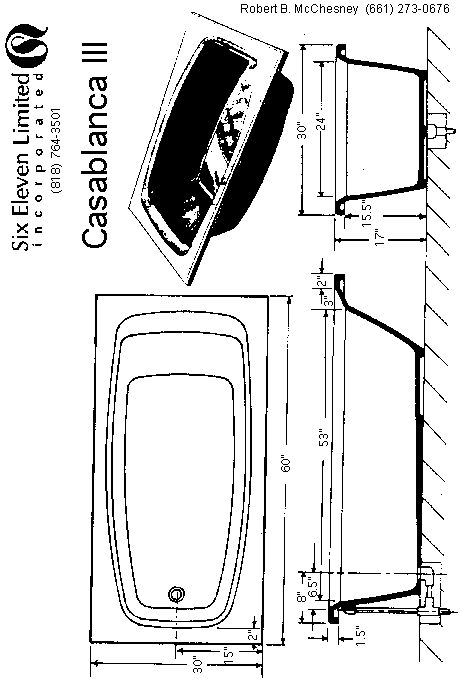

Casablanca III
|
60"
|
30"
|
17"
|
45 gal.
|
15 lbs.
|
Rectangle
|
Self rimming
|
|

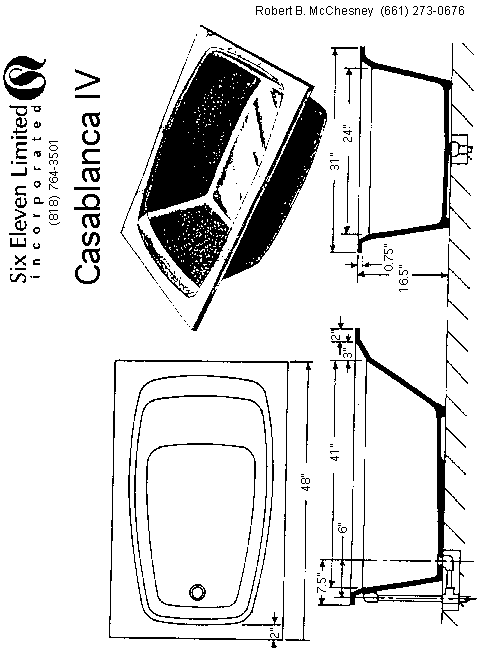

Casablanca IV
|
48"
|
31"
|
16.5"
|
40 gal.
|
160 lbs.
|
Rectangle
|
Flat deck
|
|
Dallas
|
96"
|
61.5"
|
27.5"
|
140 gal.
|
850 lbs.
|
Notched Front
|
Internal steps, arm rests
|
|

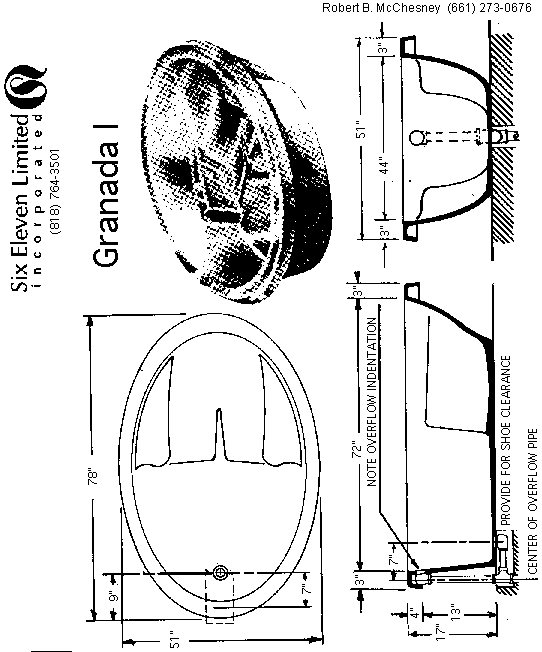

Granada I
|
78"
|
51"
|
17"
|
90 gal.
|
300 lbs.
|
Oval
|
Self rimminng, arm rests
|
|

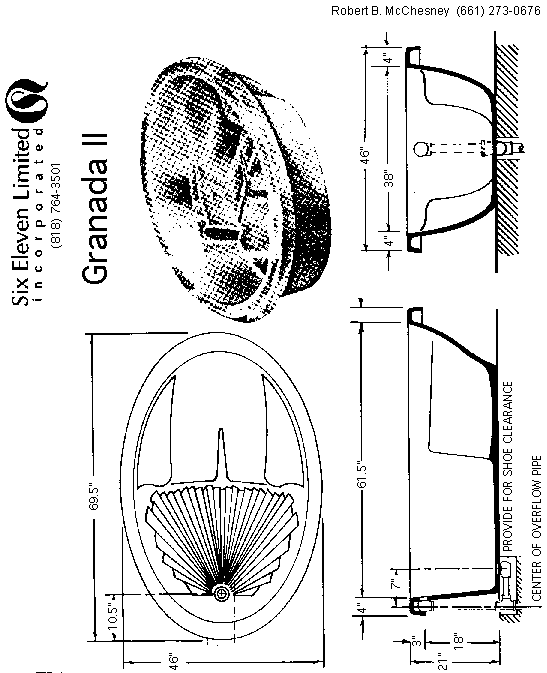

Granada II
|
69.5"
|
46"
|
21"
|
90 gal.
|
265 lbs.
|
Oval
|
Self rimming, arm rests
|
|

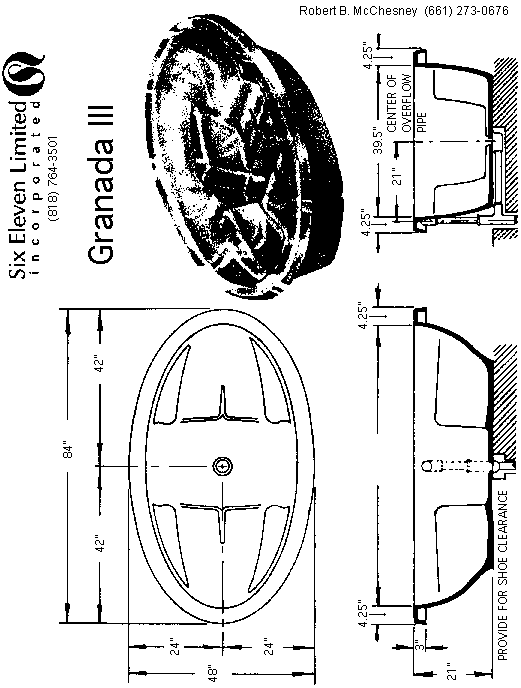

Granada III
|
84"
|
48"
|
21"
|
110 gal.
|
335 lbs.
|
Oval
|
Self rimming, arm rests, two seater, center drain
|
|

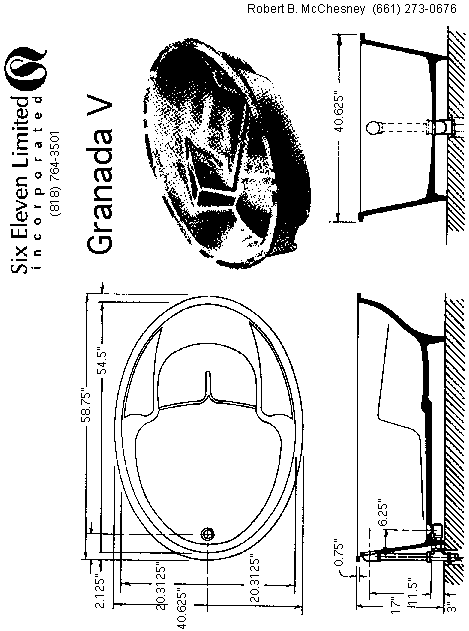

Granada V
|
58.75"
|
40.625"
|
17"
|
45 gal.
|
302 lbs.
|
Oval
|
Flat deck, arm rests
|
|

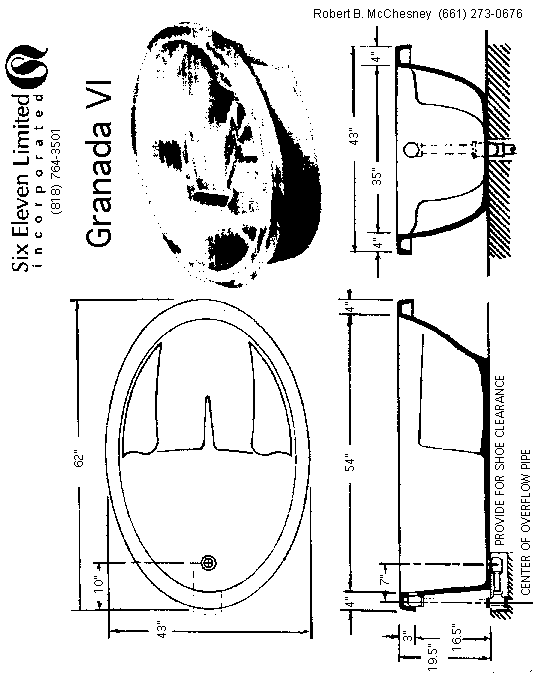

Granada VI
|
62"
|
43"
|
19.5"
|
70 gal.
|
184 lbs.
|
Oval
|
Self rimming, arm rests
|
|

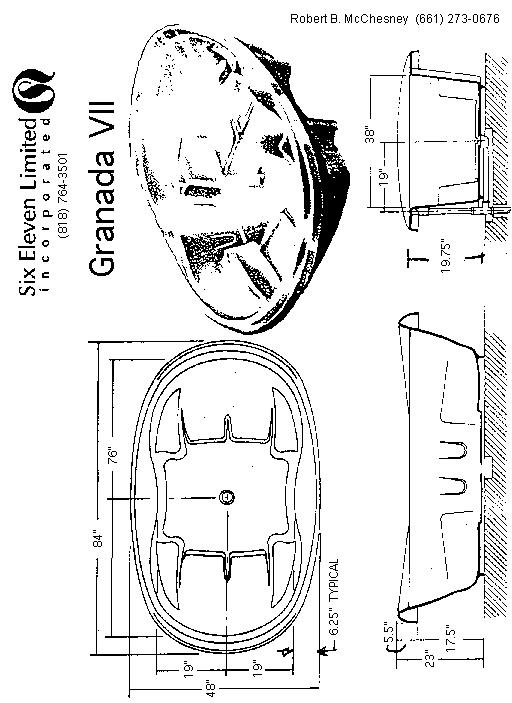

Granada VII
|
84"
|
48"
|
23"
|
75 gal.
|
245 lbs.
|
Oval
|
Self rimming, arm rests, two seater, center drain
|
|

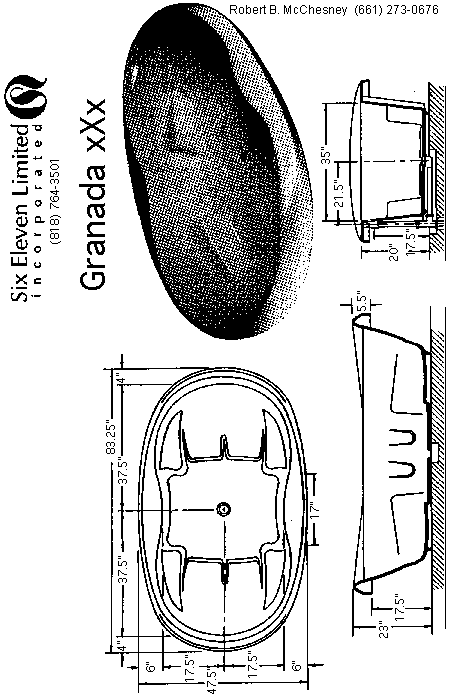

Granada xXx
|
83.25"
|
47.5"
|
23"
|
100 gal.
|
175 lbs.
|
Oval
|
Self rimming, arm rests, two seater, center drain
|
|

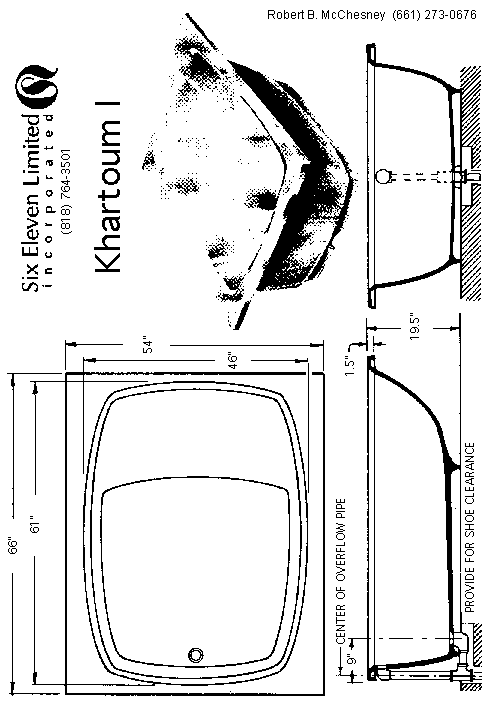

Khartoum I
|
66"
|
54"
|
19.5"
|
120 gal.
|
285 lbs.
|
Rectangle
|
Self rimming
|
|

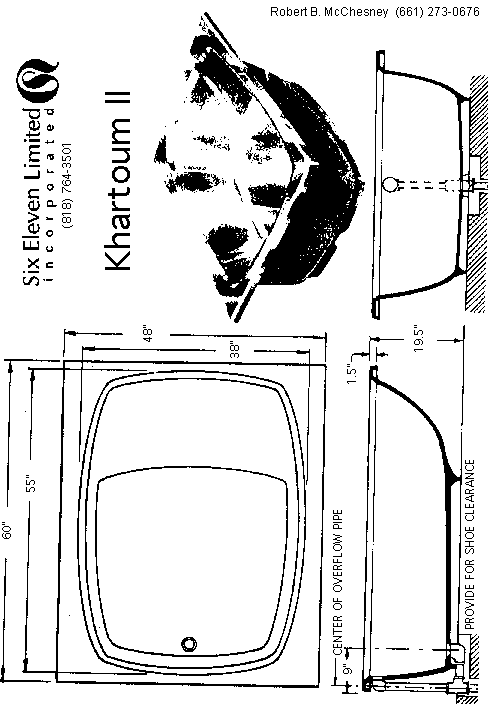

Khartoum II
|
60"
|
48"
|
19.5"
|
75 gal.
|
235 lbs.
|
Rectangle
|
Self rimming
|
|
La Costa
|
84"
|
51"
|
22.125"
|
90 gal.
|
420 lbs.
|
Rectangle
|
Arm rests
|
|
Las Adas
|
72"
|
48"
|
19.25"
|
75 gal.
|
295 lbs
|
Rectangle
|
Flat deck, arm rests
|
|

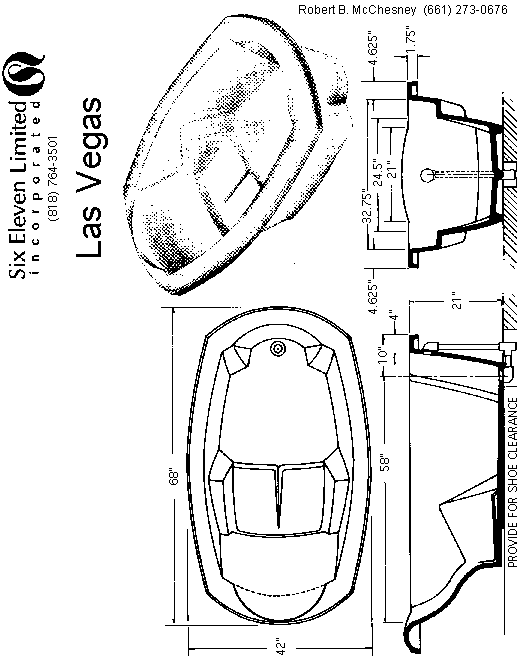

Las Vegas
|
68"
|
42"
|
21"
|
70 gal.
|
230 lbs.
|
Oval
|
Self rimminng, arm rests
|
|

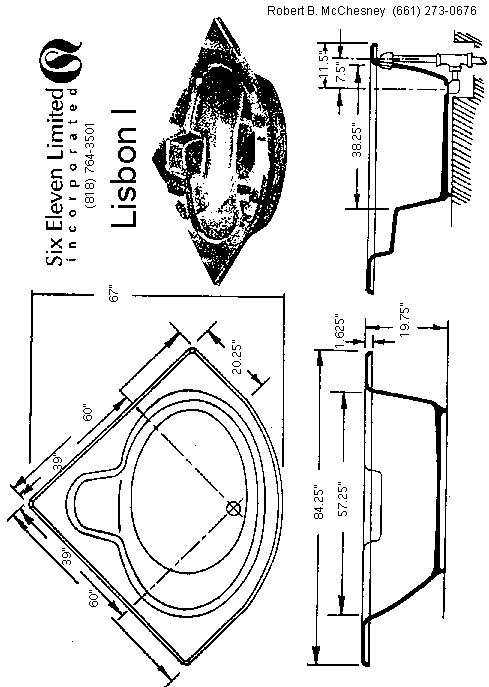

Lisbon I
|
84.25"
|
38.25"
|
19.75"
|
70 gal.
|
335 lbs.
|
Neo-angle
|
Self rimminng
|
|

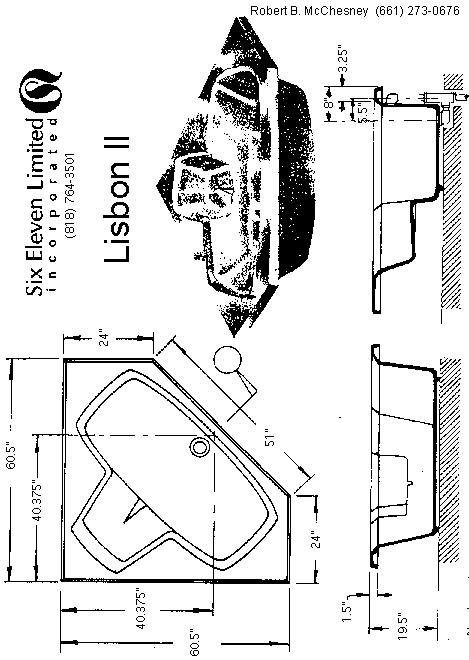

Lisbon II
|
60.5"
|
60.5"
|
19.5"
|
70 gal.
|
295 lbs.
|
Neo-angle
|
Self rimming
|
|
Lisbon III
|
60"
|
60"
|
19.75"
|
70 gal.
|
295 lbs.
|
Neo-angle
|
Self rimming, arm rests, two seater
|
|

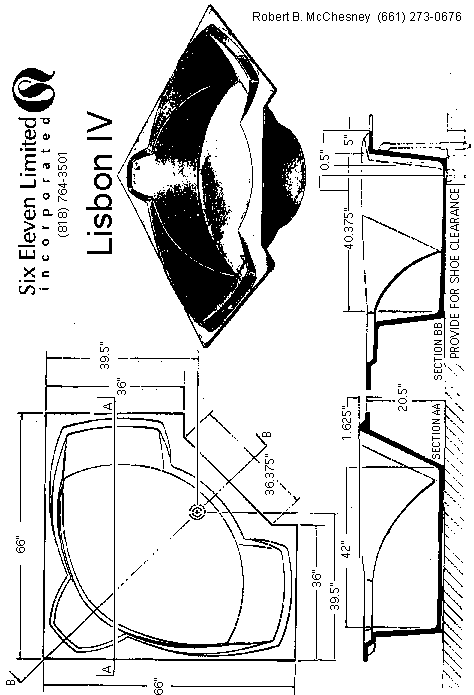

Lisbon IV
|
66"
|
66"
|
20.5"
|
85 gal.
|
350 lbs.
|
Neo-angle
|
Self rimming, two seater
|
|

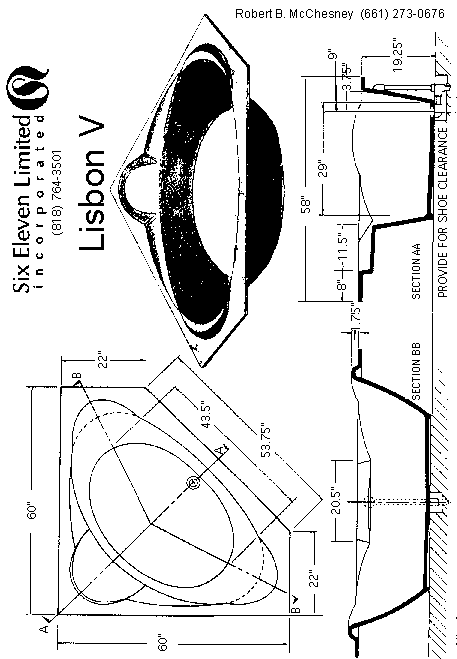

Lisbon V
|
60"
|
60"
|
19.25"
|
75 gal.
|
315 lbs.
|
Neo-angle
|
Self rimming
|
|

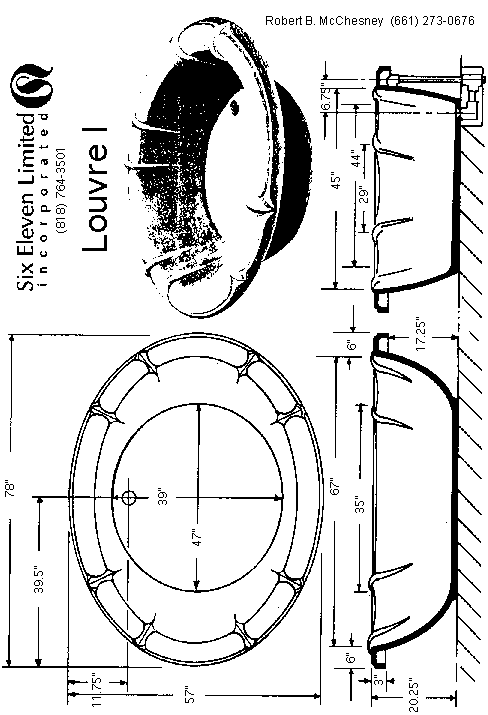

Louvre I
|
78"
|
57"
|
20.25"
|
115 gal.
|
285 lbs.
|
Oval
|
Self rimming
|
|

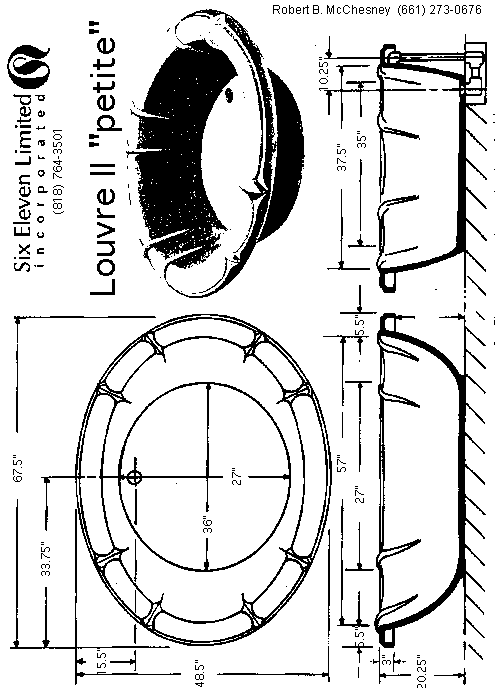

Louvre II "petite"
|
67.5"
|
48.5"
|
20.25"
|
65 gal.
|
200 lbs.
|
Oval
|
Self rimming
|
|

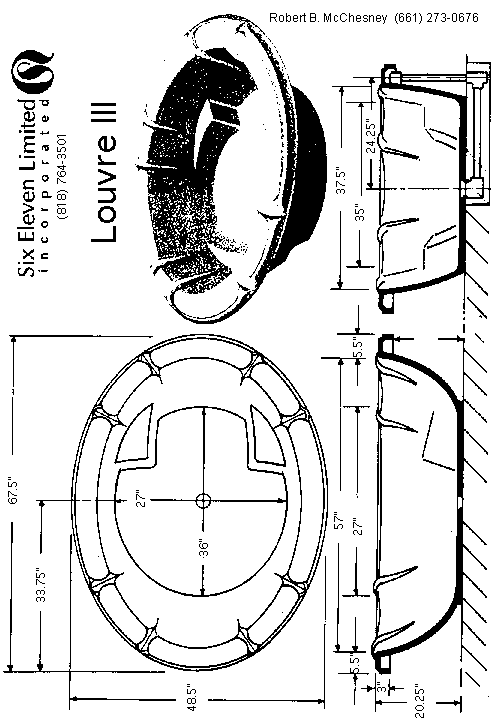

Louvre III
|
67.5"
|
48.5"
|
20.25"
|
60 gal.
|
200 lbs.
|
Oval
|
Self rimming, arm rests, center drain
|
|

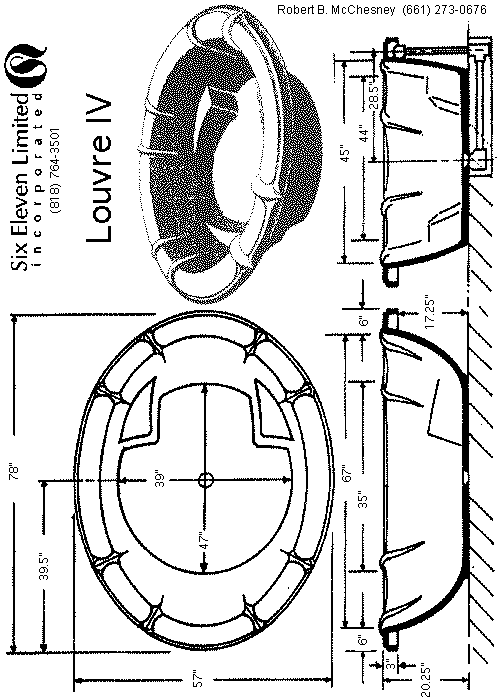

Louvre IV
|
78"
|
57"
|
20.25"
|
110 gal.
|
285 lbs.
|
Oval
|
Self rimming, arm rests, center drain
|
|

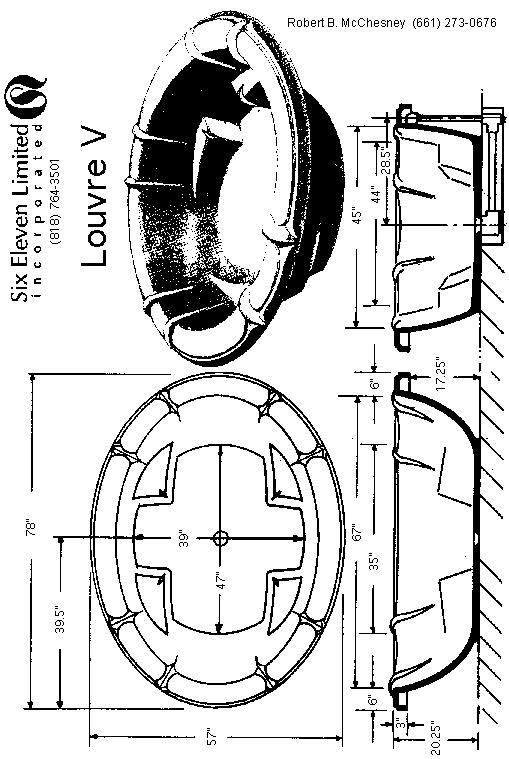

Louvre V
|
78"
|
57"
|
20.25"
|
105 gal.
|
285 lbs.
|
Oval
|
Self rimming, arm rests, two seater, center drain
|
|

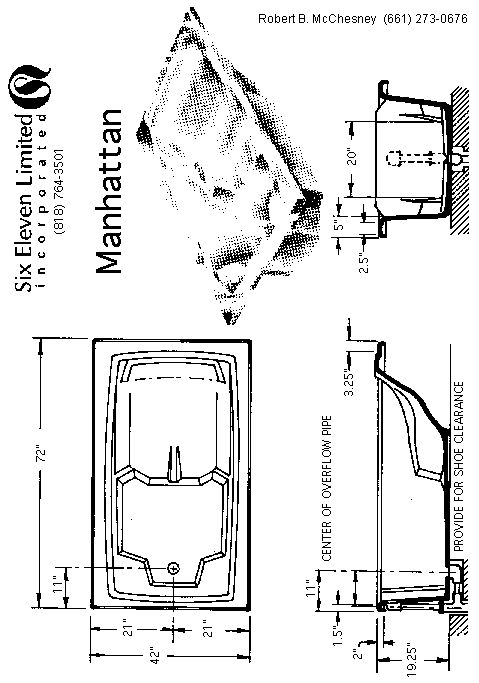

Manhattan
|
72"
|
42"
|
19.25"
|
70 gal.
|
245 lbs.
|
Rectangle
|
Self rimming, arm rests
|
|

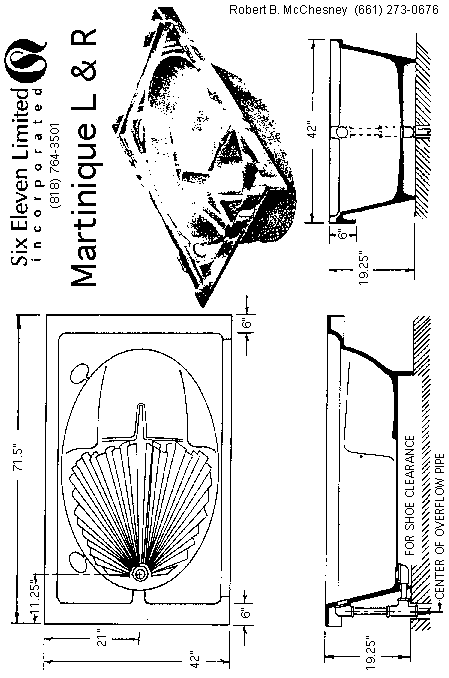

Martinique L &
R
|
71.5"
|
42"
|
19.25"
|
50 gal.
|
395 lbs.
|
Rectangle
|
Self rimming, arm rests
|
|

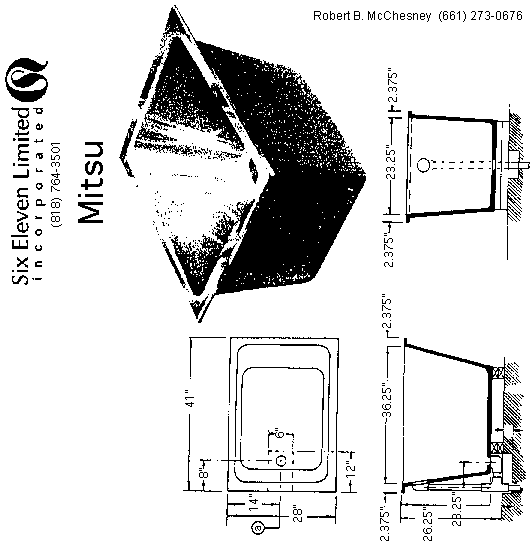

Mitsu
|
41"
|
28"
|
26.25"
|
50 gal.
|
194 lbs.
|
Square
|
Flat deck
|
|

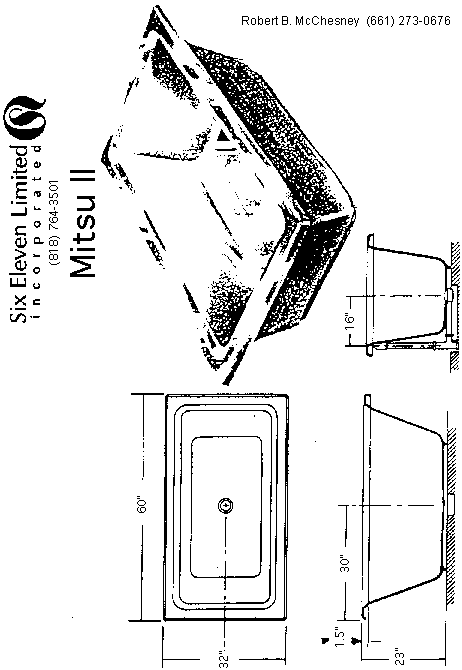

Mitsu II
|
60"
|
32"
|
23"
|
50 gal.
|
194 lbs.
|
Square
|
Self rimming, center drain
|
|

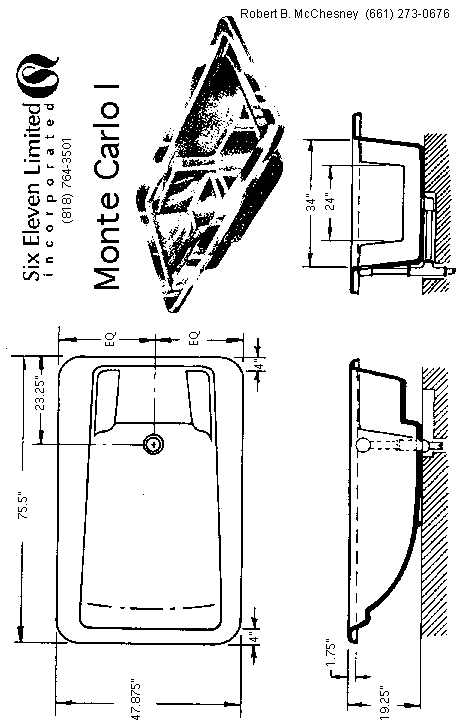

Monte Carlo I
|
75.5"
|
47.875"
|
19.25"
|
95 gal.
|
285 lbs.
|
Rectangle
|
Self rimming, arm rests
|
|
New York
|
64"
|
64"
|
20"
|
150 gal.
|
357 lbs.
|
Circle
|
Self rimming
|
|

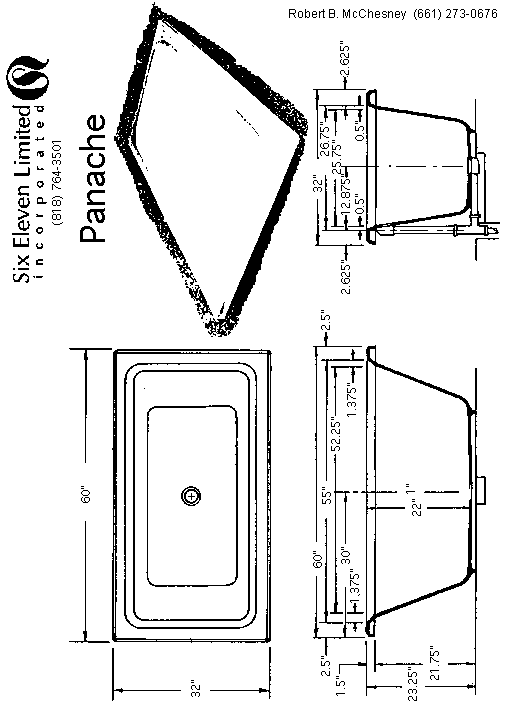

Panache
|
60"
|
32"
|
23.25"
|
65 gal.
|
130 lbs.
|
Rectangle
|
Self rimming
|
|

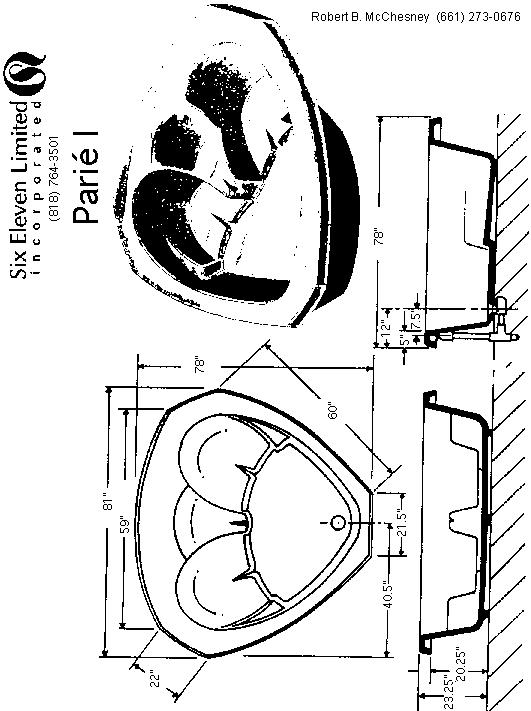

Parié I
|
81"
|
78"
|
23.25"
|
115 gal.
|
330 lbs.
|
Heart
|
Self rimming, arm rests, two seater
|
|

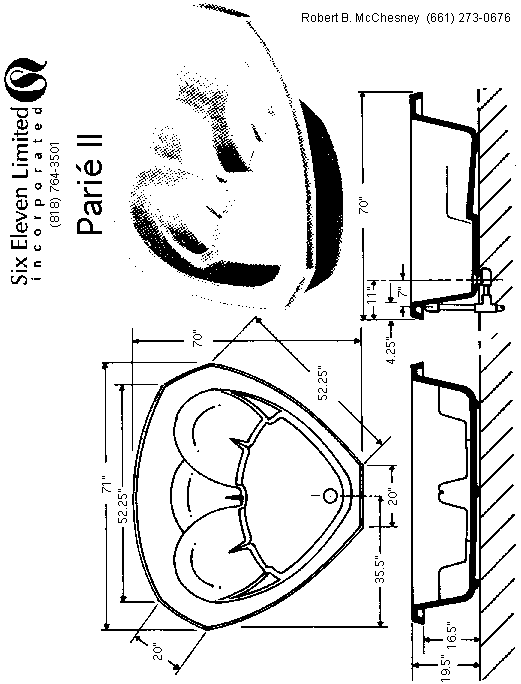

Parié II
|
71"
|
70"
|
19.5"
|
90 gal.
|
275 lbs.
|
Heart
|
Self rimming, arm rests, two seater
|
|
Rio I
|
74.25"
|
48"
|
19.25"
|
95 gal.
|
290 lbs.
|
Rectangle
|
Self rimming
|
|

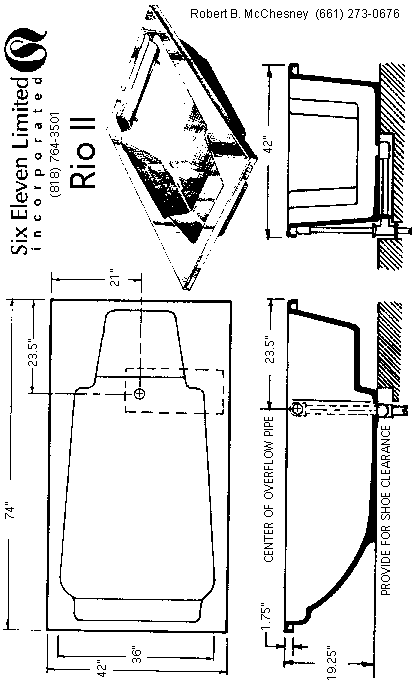

Rio II
|
74"
|
42"
|
19.25"
|
75 gal.
|
275 lbs.
|
Rectangle
|
Self rimming
|
|

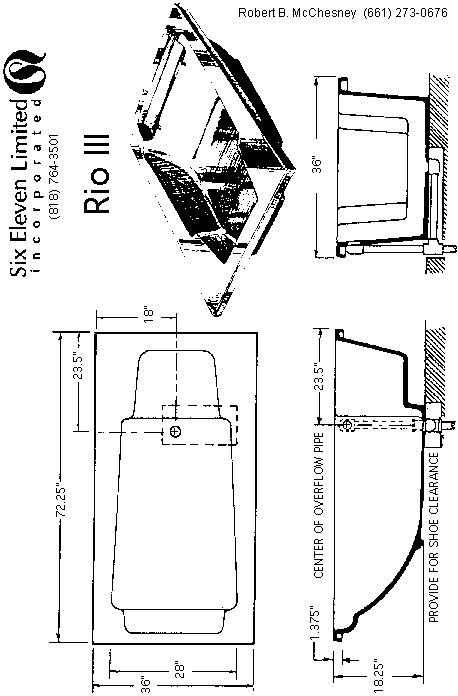

Rio III
|
72.25"
|
36"
|
18.25"
|
70 gal.
|
225 lbs.
|
Rectangle
|
Self rimming
|
|

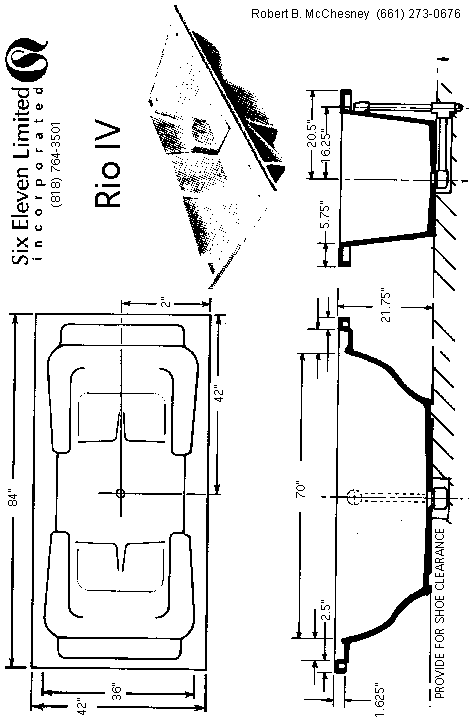

Rio IV
|
84"
|
42"
|
21.75"
|
95 gal.
|
290 lbs.
|
Rectangle
|
Self rimming, arm rests, two seater, center drain
|
|

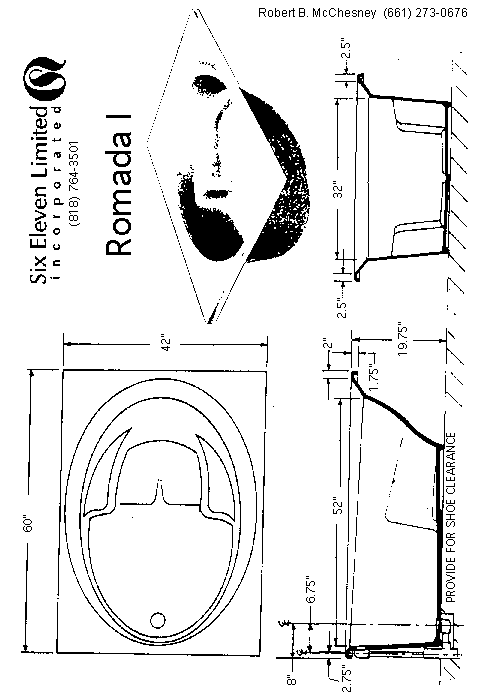

Romada I
|
60"
|
42"
|
19.75"
|
70 gal.
|
215 lbs.
|
Rectangle
|
Self rimming, arm rests
|
|

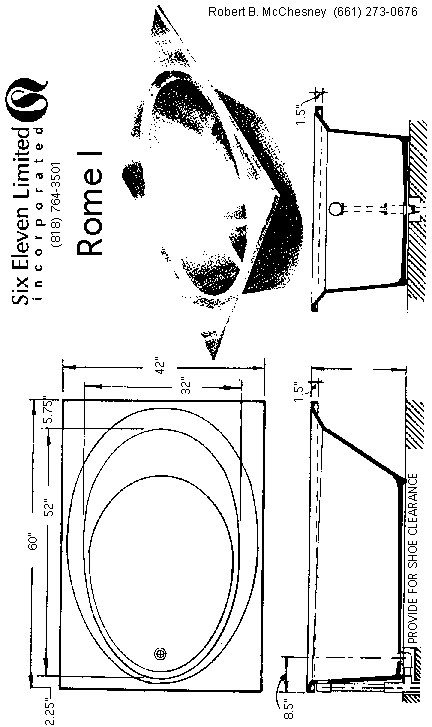

Rome I
|
60"
|
42"
|
16"
|
65 gal.
|
160 lbs.
|
Rectangle
|
Self rimming
|
|
Rome II
|
73.25"
|
42.25"
|
18.75"
|
50 gal.
|
255 lbs.
|
Rectangle
|
Self rimming
|
|

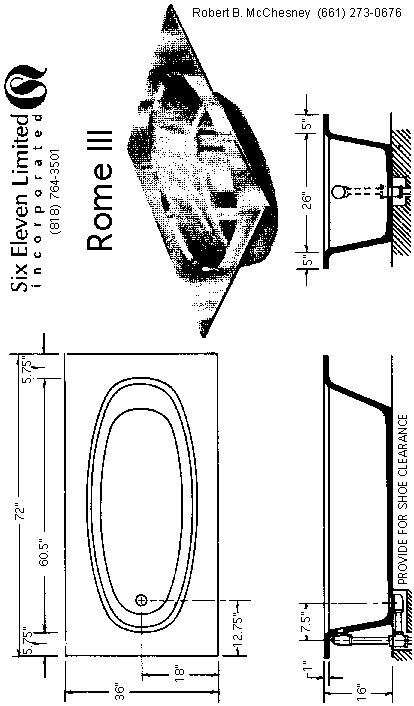

Rome III
|
72"
|
36"
|
16"
|
65 gal.
|
300 lbs.
|
Rectangle
|
Flat deck
|
|

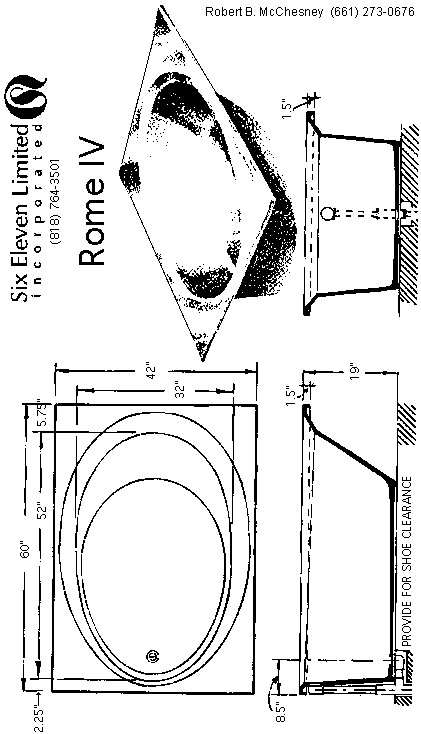

Rome IV
|
60"
|
42"
|
19"
|
65 gal.
|
195 lbs.
|
Rectangle
|
Self rimming
|
|
Rome V
|
60.25"
|
36.25"
|
19.25"
|
55 gal.
|
165 lbs.
|
Rectangle
|
Flat deck
|
|

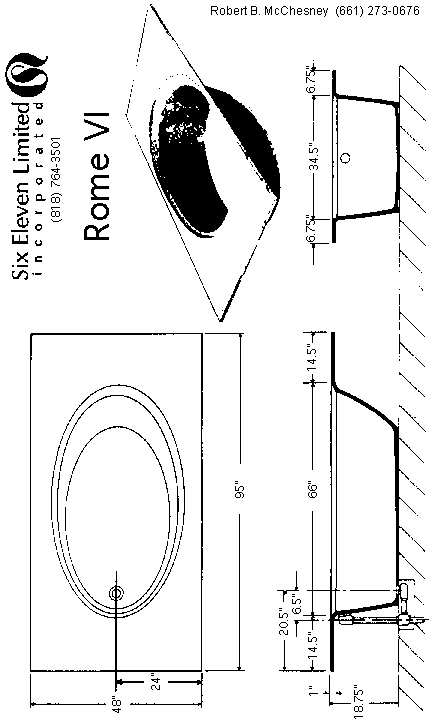

Rome VI
|
95"
|
48"
|
18.75"
|
70 gal.
|
380 lbs.
|
Rectangle
|
Flat deck
|
|

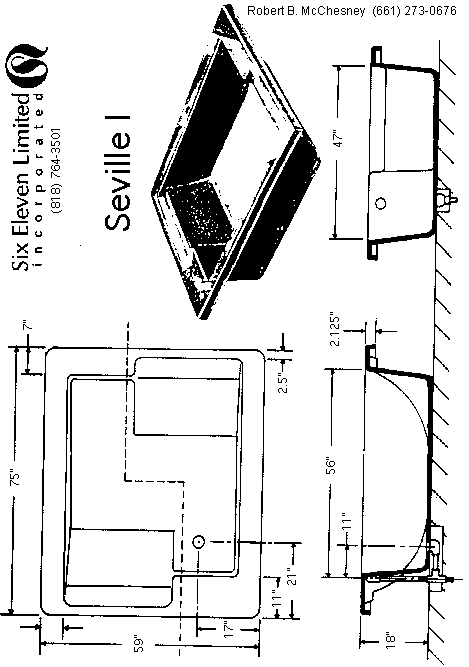

Seville I
|
75"
|
59"
|
18"
|
110 gal.
|
310 lbs.
|
Square
|
Self rimming, two seater
|
|
Seville II
|
68.125"
|
48"
|
18"
|
90 gal.
|
240 lbs.
|
Square
|
Self rimming, two seater
|
|

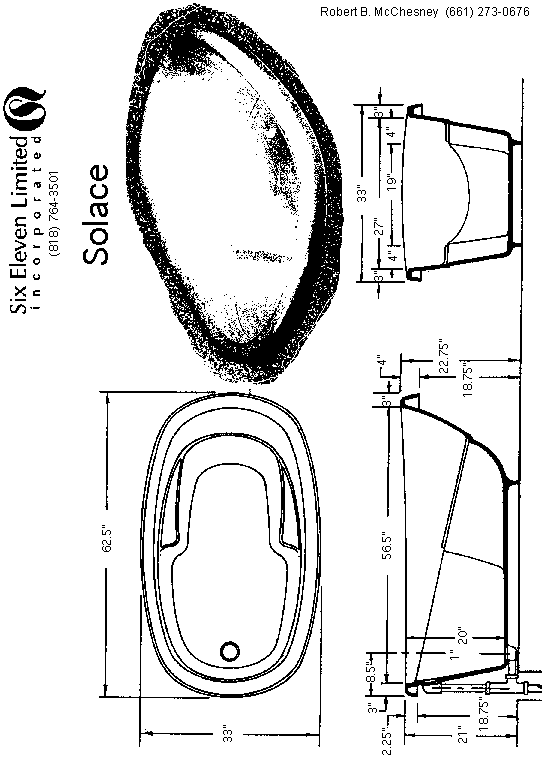

Solace
|
62.5"
|
33"
|
22.75"
|
55 gal.
|
130 lbs.
|
Oval
|
Self rimming, arm rests
|
|

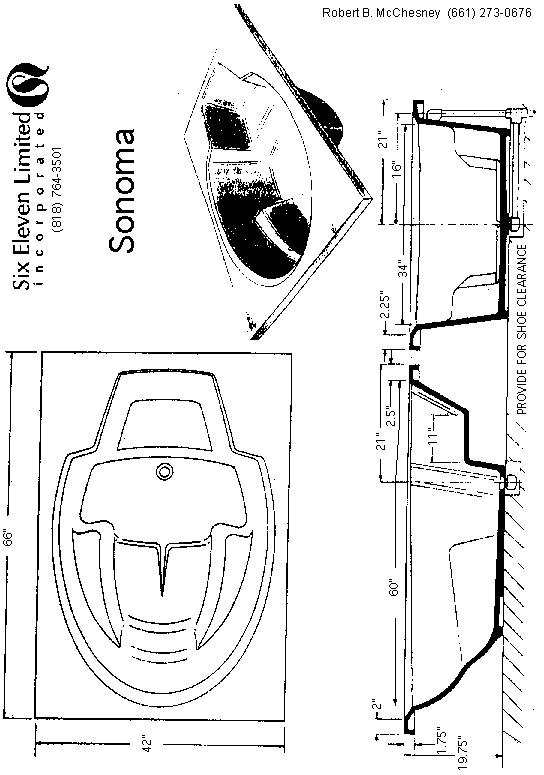

Sonoma
|
66"
|
42"
|
19.75"
|
75 gal.
|
230 lbs.
|
Rectangle
|
Self rimming, arm rests
|
|

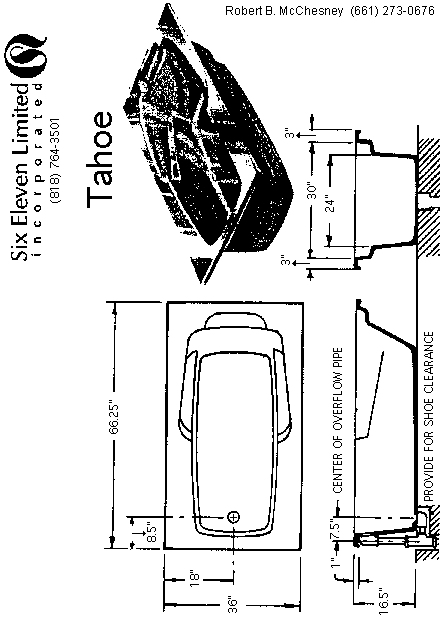

Tahoe
|
66.25"
|
36"
|
16.5"
|
55 gal.
|
290 lbs.
|
Rectangle
|
Self rimmimg
|
|

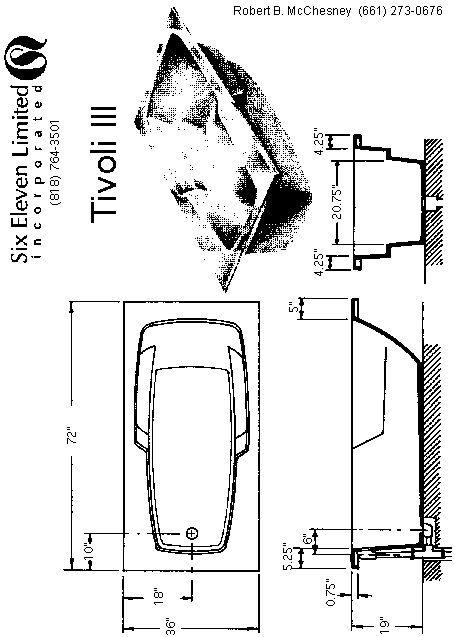

Tivoli III
|
72"
|
36"
|
19"
|
65 gal.
|
245 lbs.
|
Rectangle
|
Arm rests
|
|

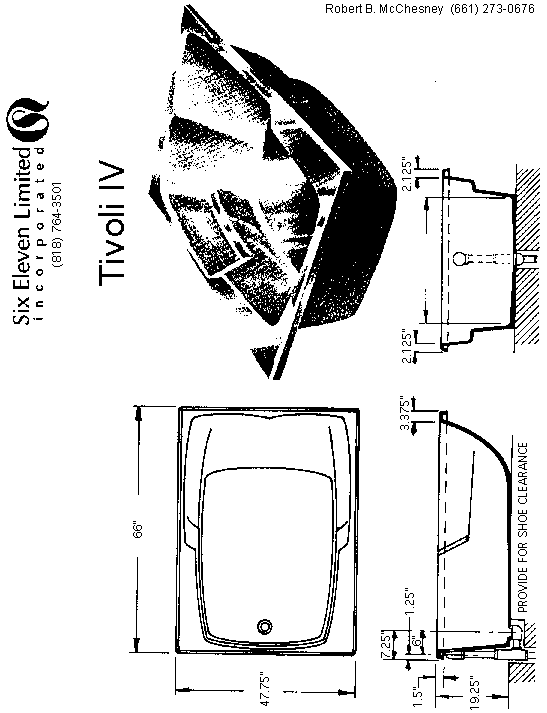

Tivoli IV
|
66"
|
47.75"
|
19.25"
|
110 gal.
|
325 lbs.
|
Square
|
Self rimming, arm rests
|
|

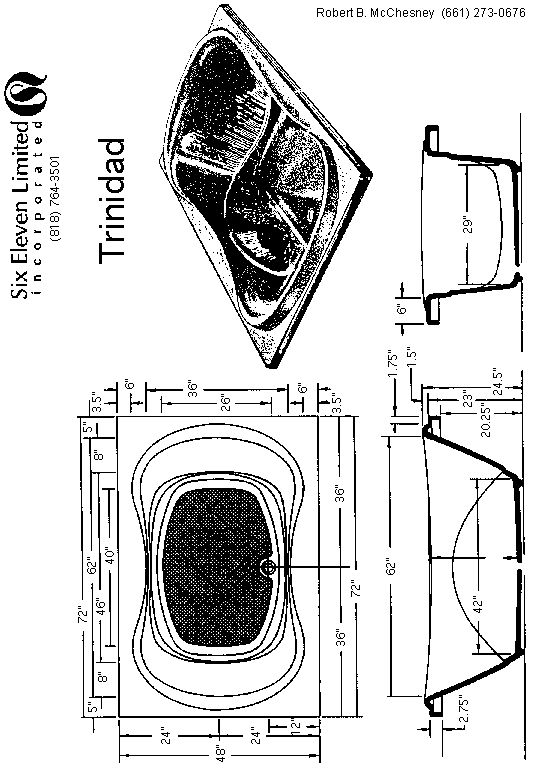

Trinidad
|
72"
|
48"
|
24.5"
|
65 gal.
|
195 lbs,
|
Rectangle
|
Self rimming
|
|

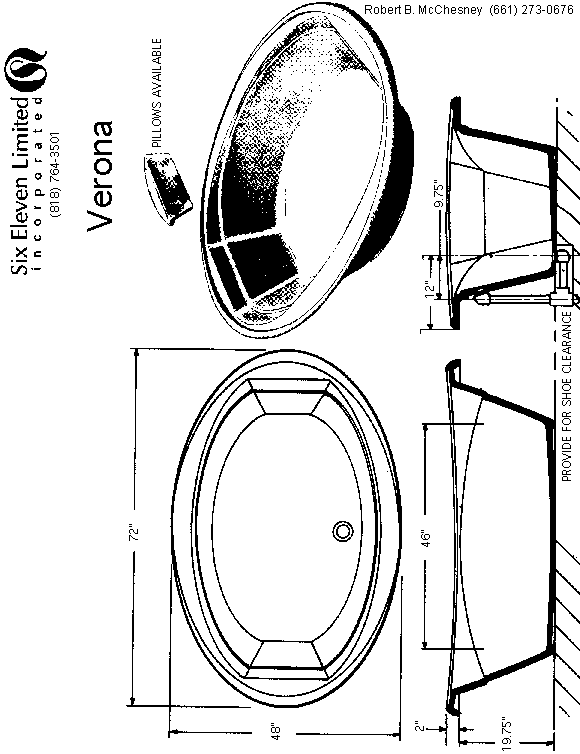

Verona
|
72"
|
48"
|
19.75"
|
75 gal.
|
245 lbs.
|
Oval
|
Self rimming, two seater
|
|
Versailles I
|
68.75"
|
47.5"
|
19.25"
|
75 gal.
|
248 lbs.
|
Oval
|
Self rimming, arm rests, two seater
|
